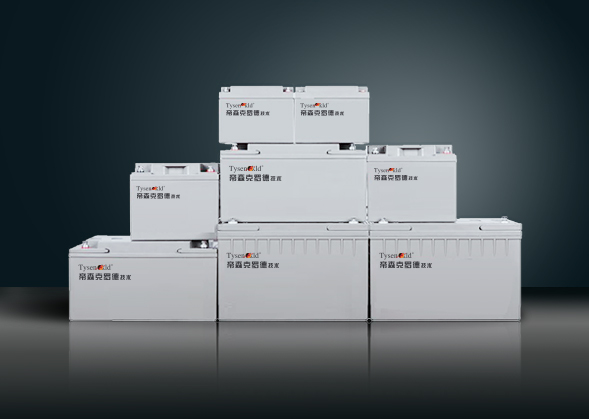

KLD-CB series colloid battery

KLD-CB series colloid battery adopts special technology and formula, and its performance is better than that of VRLA battery.

Gel lead-acid battery has the advantages of stable service performance, high reliability, long service life, strong adaptability to ambient temperature (high and low temperature), strong ability to withstand long-time discharge, cycle discharge, deep discharge and large current discharge, and self-protection of overcharge and over discharge, which is suitable for the working environment of cold or high temperature. KLD-CB series includes: kld-cb2 & kld-cb4 series gel batteries with a design life of 20 years and kld-cb6 & kld-cb12 series gel batteries with a design life of 16 years.

Advantages of Colloid Battery

  • High energy storage

    Excellent energy storage performance with high reliability;

  • Maintenance free

    Sealed maintenance-free battery,water-adding maintenance not required for life;

  • Meets DIN 40742 requirements

    2V battery meets DIN 40742 requirements

  • Special formula

    Special formula, recombination inside the gas, extremely low gas evolution rate

  • Very low self-discharge rate

    Extremely low self-discharge rate, no need to recharge when stored for two years at 20 ℃

  • Design standards

    Designed to meet IEC60896-21 / 22, AS40861 (1993) standards

  • Resistant to deep discharge

    Resistant to deep discharge and good cycle life. Fully recyclable.

  • Strong charge acceptance

    Strong charge acceptance and short charging time

  • Rated Capacity

    Rated capacity: KLD-CB6 & KLD-CB12 series 24~280AH@C20KLD-CB2&KLD-CB4 series 70~3250AH@C10

  • Long life

    Design life at 25 ℃ ambient temperature: KLD-CB6 & KLD-CB12 series is 16+ yearsKLD-CB2 & KLD-CB4 series is 20+ years

  • High/low temperature resistance

    Suitable for cold or high temperature environment, high and low temperature performance, -40 ℃ ~ + 55 ℃ can work normally

  • Housing material

    Housing material: ABS (UL94-HB, optional UL94-V0), optional PP material

Technical characteristics

  • Battery slot cover

    Using ABS material, corrosion resistance, impact resistance, more secure and reliable

    Battery slot cover

    Using ABS material, corrosion resistance, impact resistance, more secure and reliable

  • Bulkhead

    Adopt special PVC-SiO2 separator for colloid battery, which can effectively prevent lead sulfate dendrite puncture and short circuit, and the battery has higher safety and reliability

    Bulkhead

    Adopt special PVC-SiO2 separator for colloid battery, which can effectively prevent lead sulfate dendrite puncture and short circuit, and the battery has higher safety and reliability

  • Electrolyte

    Solid colloidal electrolyte, non-flowing, no leakage, can prevent the specific gravity of the electrolyte from delaminating, effectively delay the sulfation of the active material, thereby extending the battery life;

    Electrolyte

    Solid colloidal electrolyte, non-flowing, no leakage, can prevent the specific gravity of the electrolyte from delaminating, effectively delay the sulfation of the active material, thereby extending the battery life;

  • Terminal seal

    Built-in copper core lead-based pole post, with greater current carrying capacity and corrosion resistance; unique pole post sealing process, effectively avoiding the phenomenon of acid climbing

    Terminal seal

    Built-in copper core lead-based pole post, with greater current carrying capacity and corrosion resistance; unique pole post sealing process, effectively avoiding the phenomenon of acid climbing

  • Safety valve

    Open and closed valve pressure is stable, high reliability, to avoid battery case expansion, cracking and electrolyte drying up

    Safety valve

    Open and closed valve pressure is stable, high reliability, to avoid battery case expansion, cracking and electrolyte drying up

  • Plate

    Tube plate or paste plate design, using high-purity lead with a purity of more than 99.99% as raw material, more resistant to corrosion and longer service life

    Plate

    Tube plate or paste plate design, using high-purity lead with a purity of more than 99.99% as raw material, more resistant to corrosion and longer service life

Type selection of specification of KLD-CB Series Colloid Battery

(1)Specification of KLD-CB2&KLD-CB4 series Colloid Battery(Design life of 20+ years @25°C)

Capacity (Ah) Maximum size (mm)
Battery model Rated voltage (V) 10 hour rate1.80V / cell Length (L) Width (W) Height (H) Total height (Th) Terminal post
KLD-CB2-220 2 220 103 206 365 380 M10
KLD-CB2-235 2 235 187 197 265 265 M8
KLD-CB2-275 2 275 124 206 355 380 M10
KLD-CB2-330 2 330 145 206 265 380 M10
KLD-CB2-360 2 360 184 197 471 265 M8
KLD-CB2-390 2 390 124 206 265 496 M10
KLD-CB2-429 2 429 184 276 471 265 M8
KLD-CB2-468 2 468 145 206 471 496 M10
KLD-CB2-546 2 546 166 206 265 496 M10

KLD-CB2-556 2 556 184 276 646 265 M8
KLD-CB2-666 2 666 145 206 471 671 M10
KLD-CB2-845 2 845 254 210 646 496 M10
KLD-CB2-888 2 888 210 191 646 671 M10
KLD-CB2-1110 2 1110 210 233 646 671 M10
KLD-CB2-1236 2 1236 210 275 646 671 M10
KLD-CB2-1500 2 1500 210 275 796 821 M10
KLD-CB2-1750 2 1750 212 397 772 797 M10
KLD-CB2-2000 2 2000 212 397 772 797 M10

KLD-CB2-2250 2 2250 212 397 772 797 M10
KLD-CB2-2500 2 2500 212 487 772 797 M10
KLD-CB2-2750 2 2750 212 487 772 797 M10
KLD-CB2-3000 2 3000 212 576 772 797 M10
KLD-CB2-3250 2 3250 212 576 772 797 M10
KLD-CB4-70 4 70 109 184 265 265 M8
KLD-CB4-100 4 100 109 184 265 265 M8
KLD-CB4-229 4 229 184 276 265 265 M8
KLD-CB4-262 4 262 184 276 265 265 M8

(2)Specification of KLD-CB6&- CB12 Series Colloid Battery(Design life of 16+ years @25°C)

Capacity (Ah) Maximum size (mm)
Battery model Rated voltage (V) 10 hour rate1.75V / cell Length (L) Width (W) Height (H) Total height (Th) Terminal post
KLD-CB6-200 6 200 243 188 275 275 M8
KLD-CB6-261 6 280 315 180 339.5 344 M8
KLD-CB12-24 12 24 166 126 175 175 M6
KLD-CB12-26 12 26 165 176 125 125 M6
KLD-CB12-32 12 32 197 131 167 171 M6
KLD-CB12-40 12 40 198 166 171 171 M6
KLD-CB12-51 12 51 229 138 208 212 M6
KLD-CB12-56 12 56 278 175 190 190 M6
KLD-CB12-65 12 65 256 170 206 210 M6
KLD-CB12-75 12 75 353 175 190 190 M6
KLD-CB12-88 12 88 307 168 211 217 M6
KLD-CB12-100 12 100 329 171 227 231 M8
KLD-CB12-110 12 110 286 269 210 214 M8
KLD-CB12-120 12 120 341 172 264 268 M8
KLD-CB12-135 12 135 484 171 227 231 M8
KLD-CB12-160 12 160 527 224 234 238 M8
KLD-CB12-170 12 170 381 178 351 355 M8
KLD-CB12-180 12 180 527 224 234 238 M8
KLD-CB12-200 12 200 522 239 220 224 M8
KLD-CB12-210 12 210 517 274 214 236 M8
KLD-CB12-230 12 230 527 287 234 238 M8
KLD-CB12-250 12 250 527 287 234 238 M8

Model problem, welcome to inquire!
